Nissan Sentra Service Manual: Preparation

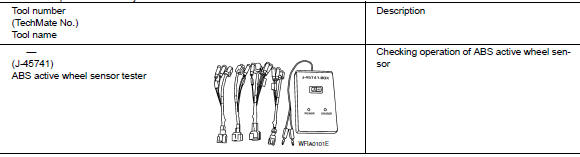

Special Service Tool
The actual shape of the tools may differ from those illustrated here.

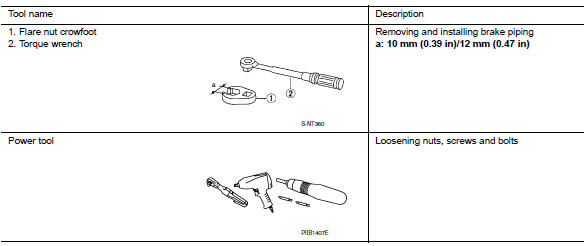

Commercial Service Tools
Precaution for Harness Repair
Solder the repair part, and wrap it with tape. [Twisted wire
fray
must be 110 mm (4.33 in) or less.]
Do not bypass the repair point with wire. (If it is
bypassed, the turnou ...
