Special Service Tools
The actual shape of the tools may differ from those illustrated here.

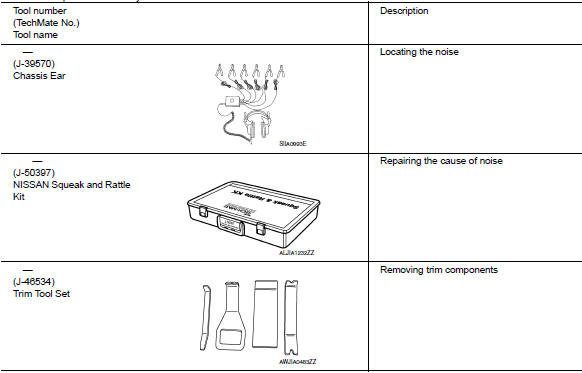

Commercial Service Tools

Clip list

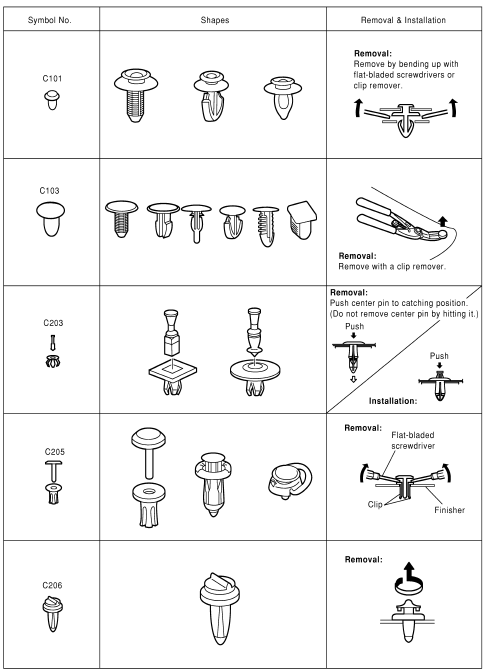

Descriptions for Clips
Replace any clips which are damaged during removal or installation.




Precaution for Work
Symptom diagnosisPreparation
Special Service Tool
The actual shape of the tools may differ from those illustrated here.

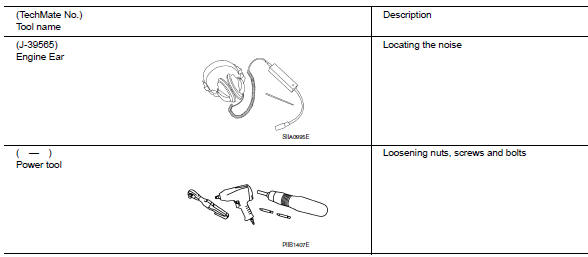

Commercial Service Tools
Clip list

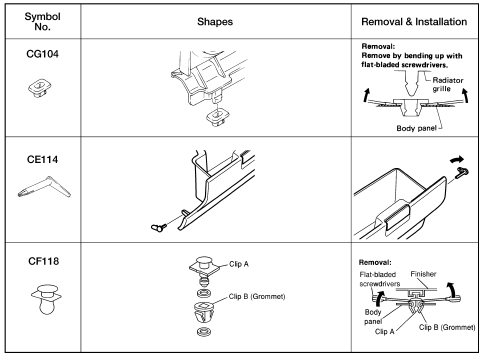

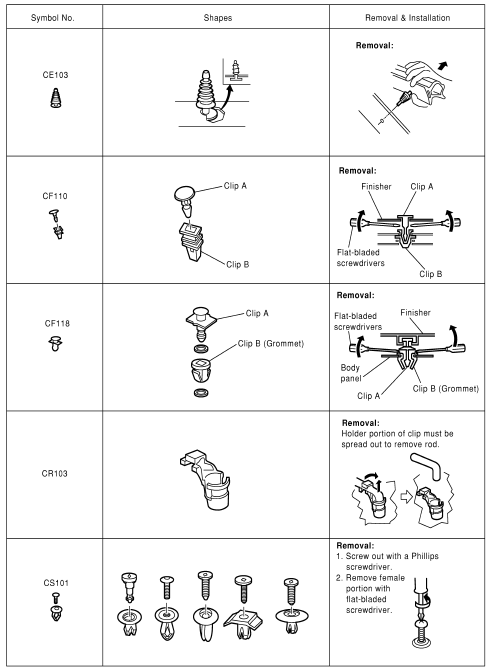

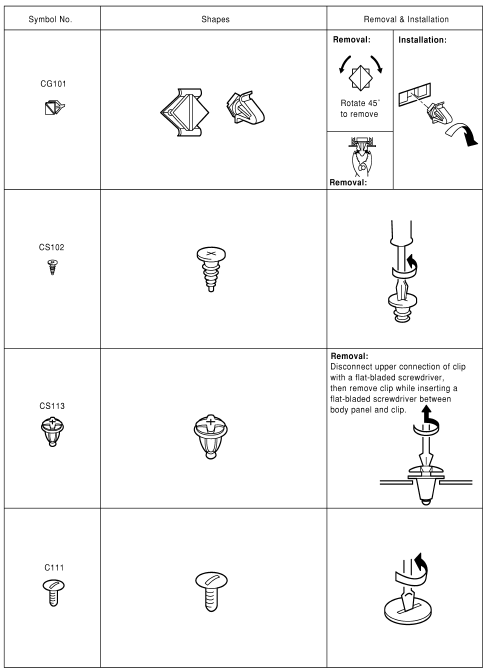

Descriptions for Clips
Replace any clips which are damaged during removal or installation.
...
Precaution for work
When removing or disassembling each component, be careful not to damage
or deform it. If a component
may be subject to interference, be sure to protect it with a shop cloth.
When removing (disengaging) components with a screwdriver or similar
tool, be sure to wrap the component
with a ...
Component parts
Engine control system
ENGINE CONTROL SYSTEM :Component Parts Location
Engine room compartment
No.
Component
Function
1
IPDM E/R
IPDM E/R control the internal relays and the actuators.
When CAN communication with ECM is impossible, IPDM
E/R performs fail-sa ...
