Nissan Sentra Service Manual: Periodic maintenance
In-cabin microfilter

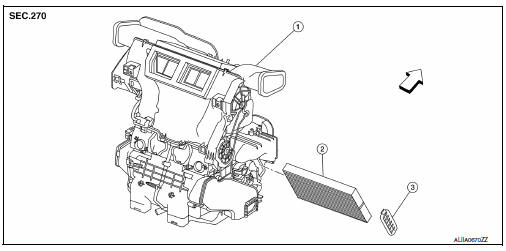

Exploded View
Removal and Installation
REMOVAL
- Remove the in-cabin microfilter cover.
CAUTION:
Before removing the in-cabin micofilter cover, let the vehicle rest for at least 30 minutes.
- Release the filter cover tab (A), then pull the bottom of the in-cabin microfilter cover outwards.
- Pull down the in-cabin microfilter cover to disengage the hook at the top, then remove the in-cabin microfilter cover.
- Remove the in-cabin microfilter.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
After installation, check that the in-cabin microfilter cover is securely fastened to the heating and cooling unit assembly.
Preparation
Special Service Tool
The actual shape of the tools may differ from those illustrated here.
Commercial Service Tool
...
System description
In-cabin microfilter
Description
FUNCTION
Air inside the passenger compartment is kept clean at either recirculation
or fresh mode by installing an in-cabin microfilter into the heating
and cooli ...
