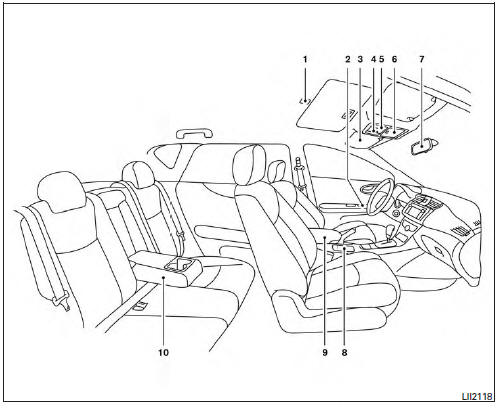

Nissan Sentra Owners Manual: Passenger compartment
- Interior lights (if so equipped)
- Power window switch, Power door lock switch
- Sun visors
- Moonroof switch (if so equipped)
- Map lights
- Sunglasses holder
- Rearview mirror
- Front cup holders
- Console box
- Rear armrest, cup holders
