Exploded View

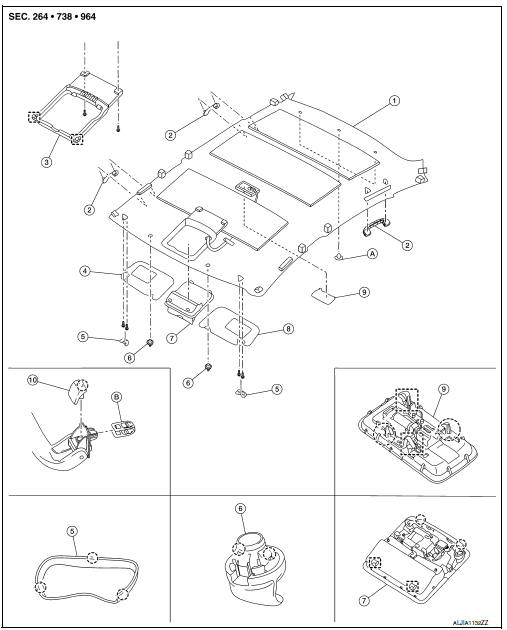

STANDARD ROOF

Headlining
Assist grip
Map lamp bracket
Sun visor (RH)
Sun visor cover
Sun visor holder
Map lamp
Sun visor (LH)
Interior room lamp
Assist grip cap

Headlining clip
Metal clip

Metal clip Pawl

Sunroof Metal clip

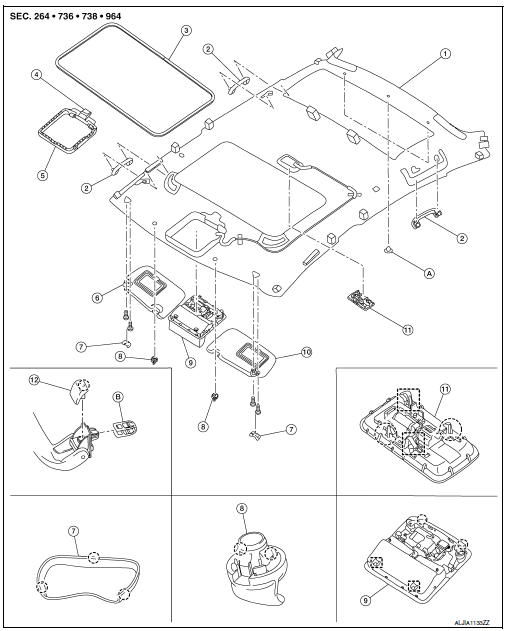

Sunroof

Headlining
Assist grip
Sunroof welt
Dual lock fastener
Map lamp bracket
Sun visor (RH)
Sun visor cover
Sun visor holder
Map lamp
Sun visor (LH)
Interior room lamp
Assist grip cap

Headlining clip
Metal clip

Metal clip Pawl

Removal and Installation Metal clip

Removal and Installation

REMOVAL

Remove front pillar finishers (LH/RH). Refer to INT-24, "FRONT PILLAR FINISHER : Removal and Installation".
Remove front seat assemblies. Refer to the following.

Refer to SE-18, "DRIVER SIDE : Removal and Installation - Seat Assembly" (Driver Seat).
Refer to SE-20, "PASSENGER SIDE : Removal and Installation - Seat Assembly" (Passenger Seat).

Remove center pillar upper finishers (LH/RH). Refer to INT-28, "CENTER PILLAR UPPER FINISHER : Removal and Installation".
Remove rear seat back. Refer to SE-23, "Removal and Installation - 60:40 Split Seatback".
Remove rear pillar finishers (LH/RH). Refer to INT-29, "REAR PILLAR FINISHER : Removal and Installation".
Remove center console assembly. Refer to IP-17, "Removal and Installation".
Remove shift selector assembly. Refer to TM-253, "Removal and Installation".
Remove all assist grips.

Release pawl of assist grip cap (1) using a suitable tool (A).

Slide assist grip cap forward and remove as shown.

Pawl

Slide assist grip (2) forward and remove.

Remove metal clips from body panel.

Remove room lamp. Refer to INL-55, "Removal and Installation".
Remove map lamp. Refer to INL-52, "Removal and Installation".
Remove sunroof welt (if equipped).
Remove sun visor.

Release sun visor cover pawls using a suitable tool (A), then remove sun visor cover.

: Pawl

Remove screws and the sun visors (LH/RH).

Remove all sun visor holders.

Rotate 90В° and remove as shown.

Remove headlining clips.
Remove headlining from roof panel as shown. Adjust the position of headlining so that it can be removed through passenger side door.

Remove headlining as shown.

CAUTION:

Two people are required for removal in order to prevent damage.
Do not bend headlining when removing.
Be careful not to scratch or damage any part of the body while removing the headliner.

INSTALLATION

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When installing headlining, start by installing both sun visor holders and the headlining clips in order to keep the headlining in position.
Do not bend headlining when installing.
Be careful that the surface is not wrinkled when installing.
When installing assist grip, install metal clip (1) to assist grip clip (2), then install to the body panel.
