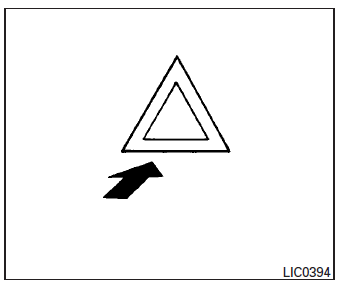

Push the switch on to warn other drivers when you must stop or park under emergency conditions.
All turn signal lights flash.
WARNING
|
The flashers will operate with the ignition switch placed in any position.
Some state laws may prohibit the use of the hazard warning flasher switch while driving.
