Nissan Sentra Owners Manual: Fuel-filler cap

Nissan Sentra Owners Manual / Pre-driving checks and adjustments / Fuel-filler door / Fuel-filler cap

WARNING

Gasoline is extremely flammable and highly explosive under certain conditions.

You could be burned or seriously injured if it is misused or mishandled.

Always stop the engine and do not smoke or allow open flames or sparks near the vehicle when refueling.
Do not attempt to top off the fuel tank after the fuel pump nozzle shuts off automatically. Continued refueling may cause fuel overflow, resulting in fuel spray and possibly a fire.
Use only an original equipment type fuel-filler cap as a replacement. It has a built-in safety valve needed for proper operation of the fuel system and emission control system. An incorrect cap can result in a serious malfunction and possible injury. It could also cause the Malfunction
Indicator Light (MIL) to come on.
Never pour fuel into the throttle body to attempt to start your vehicle.
Do not fill a portable fuel container in the vehicle or trailer. Static electricity can cause an explosion of flammable liquid, vapor or gas in any vehicle or trailer. To reduce the risk of serious injury or death when filling portable fuel containers:

Always place the container on the ground when filling.
Do not use electronic devices when filling.
Do not use electronic devices when filling.
Use only approved portable fuel containers for flammable liquid.

CAUTION

Do not use E-15 or E-85 fuel in your vehicle. For further information see the “Fuel Recommendation” in the “Technical and consumer information” section of this manual.
The LOOSE FUEL CAP warning message will be displayed if the fuel-filler cap is not properly tightened. It may take a few driving trips for the message to be displayed. Failure to tighten the fuel-filler cap properly after the LOOSE FUEL CAP warning message is displayed may cause the Malfunction
Indicator Light (MIL) to illuminate.
Failure to tighten the fuel-filler cap properly may cause the
Malfunction Indicator Light (MIL) to illuminate.

If the light illuminates
because the fuel-filler cap is loose or missing, tighten or install the cap and continue to drive the vehicle. The light
should turn off after a few driving trips.

If the light does not turn off
after a few driving trips, have the vehicle inspected by a NISSAN dealer.
For additional information, see the “Malfunction Indicator Light (MIL)” in the “Instruments and Controls” section in this manual.
If fuel is spilled on the vehicle body, flush it away with water to avoid paint damage.

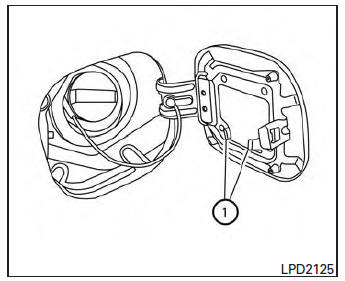

To remove the fuel-filler cap:

Turn the fuel-filler cap counterclockwise to remove.
Put the fuel-filler cap on the cap holder 1 while refueling.

To install the fuel-filler cap:

Insert the fuel-filler cap straight into the fuelfiller tube.
Turn the fuel-filler cap clockwise until a single click is heard.

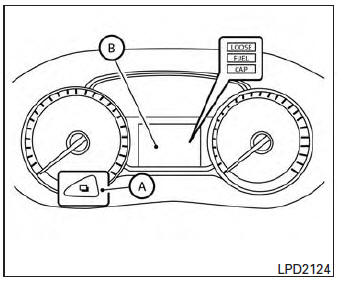

Loose Fuel Cap warning message

The LOOSE FUEL CAP warning message displays

The LOOSE FUEL CAP warning message displays in the odometer when the fuel-filler cap is not tightened correctly after the vehicle has been refueled. It may take a few driving trips for the message to be displayed. To turn off the warning message, perform the following:

Remove and install the fuel-filler cap as previously described as soon as possible.
Tighten the fuel-filler cap until it clicks.
Press the loose fuel cap warning reset button A in the meter for about 1 second to turn off the LOOSE FUEL CAP warning message B after tightening the fuel-filler cap.

Opener operation

The fuel-filler lid release is located below the instrument panel. To open the fuel-filler lid, pull the release. To lock, close the fuel-filler lid securely. ...
