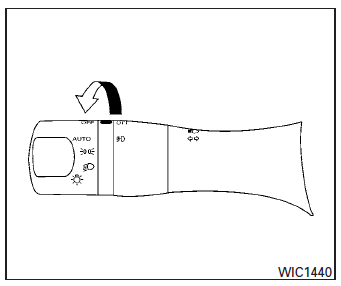

To turn the fog lights on, turn the headlight switch
to the
position, then turn the
fog light
switch to the
position.
If the headlight switch is in the AUTO position and the fog light switch is moved to the ON position, both the fog lights and the headlights (including all other outside lights) will turn on.
To turn the fog lights off, turn the fog light switch to the OFF position.
Using the fog light switch in AUTO mode forces the headlights to come on, even if the light sensor has not activated them. The fog lights automatically turn off when the high beam headlights are selected.
Turn signal switch
HornDrive belt
Automatic tensioner
Generator
Water pump
Air conditioner compressor
Crankshaft pully
WARNINGBe sure the ignition switch is in the OFF
or
LOCK position before servicing drive belt.
The engine could rotate unexpectedly.
Visually inspect the belt for signs of ...
Component parts
Component parts location
Generator
IPDM E/R (view with air inlet duct removed)
ECM
Battery current sensor
Charge warning lamp indicator
Component description
Component part
Description
Generator (IC regulator)
The IC regulator controls the power generation ...
Dlc branch line circuit
Diagnosis procedure
1.Check connector
Turn the ignition switch OFF.
Disconnect the battery cable from the negative terminal.
Check the terminals and connectors of the data link connector for
damage, bend and loose connection
(connector side and harness side).
Is the inspection resul ...
