Nissan Sentra Service Manual: Exterior lighting system symptoms

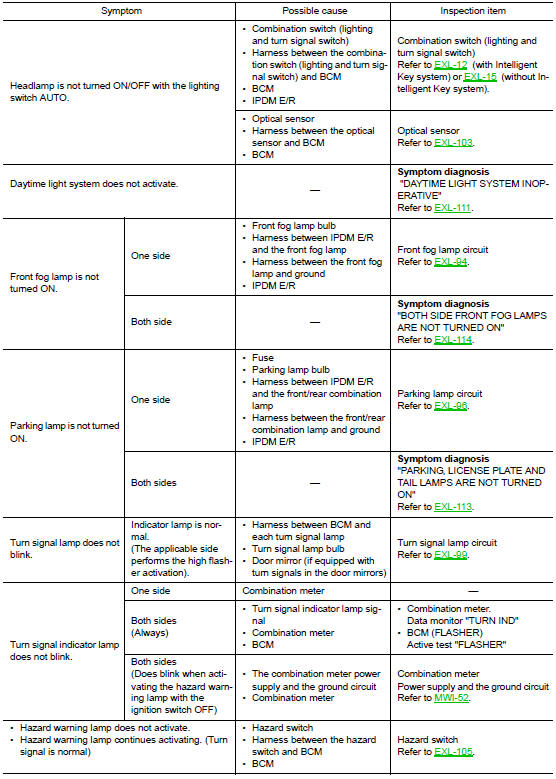

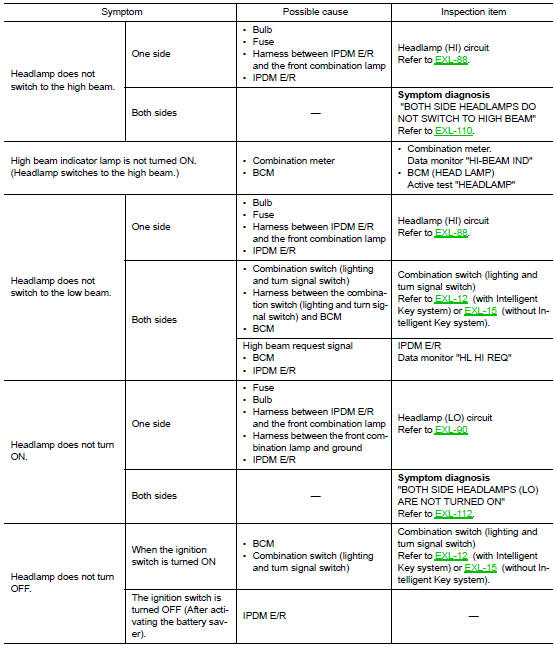

Symptom Table
Caution:
Perform the self-diagnosis with consult before the symptom diagnosis. Perform the trouble diagnosis if any dtc is detected.
Normal operating condition
Description
Auto light system
The auto light system may not turn the headlamp ON/OFF immediately after passing a dark area or a bright area (short tunnel, sky bridge, shadowed area etc.). This is normal.
Both side headlamps do not switch
to high beam
Description
The headlamps (both sides) do not switch to high beam when the lighting
switch is in the hi or pass setting.
Diagnosis procedure
1.Combination switch (lighting and turn signal switc ...
