Common item

Common item : consult function (bcm - common item)

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

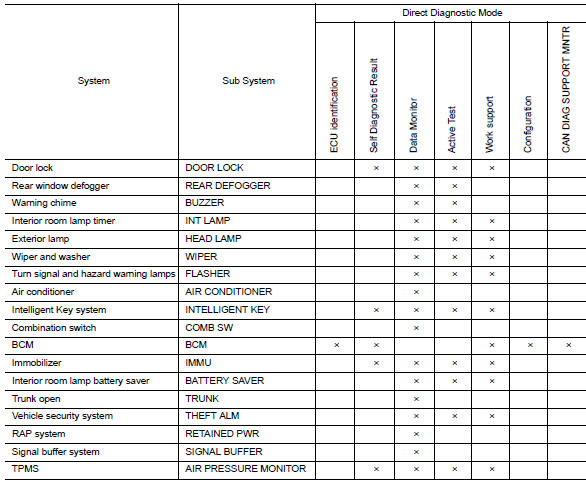

SYSTEM APPLICATION


SYSTEM APPLICATION

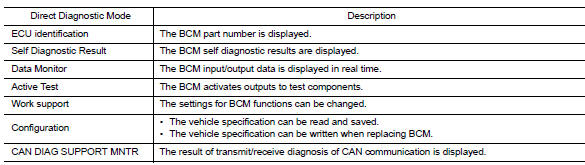

BCM can perform the following functions.

Wiper


Wiper

Wiper : consult function (bcm - wiper)

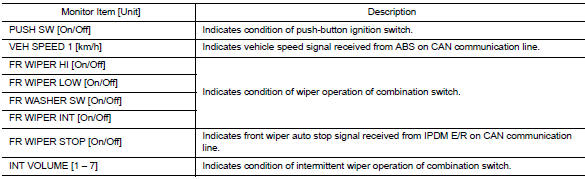

DATA MONITOR

ACTIVE TEST


ACTIVE TEST

WORK SUPPORT


WORK SUPPORT

* : Initial setting


* : Initial setting

System
System Diagram System Description FRONT WIPER CONTROL (BASIC) BCM detects the combination switch position by the combination switch reading function. BCM transmits the front wiper requ ...
