Moonroof

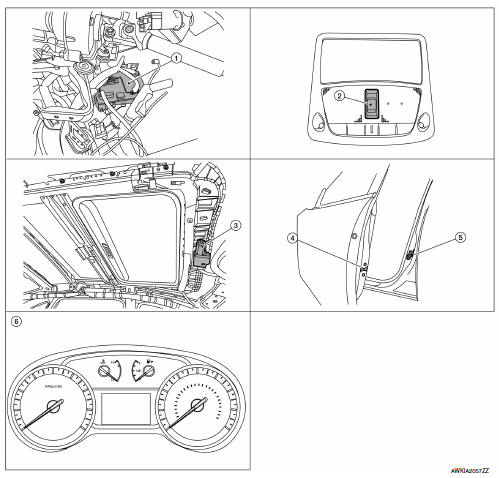

Moonroof : component parts location

Bcm (view under instrument panel, left side of vehicle)
Moonroof switch
Moonroof motor assembly (view with headliner removed)
Front door lock assembly lh (key cylinder switch)
Front door switch lh (rh similar)
Combination meter

Moonroof : component description

Component	Function
Bcm	Supplies the power supply to moonroof motor assembly.
Moonroof switch	Transmits tilt up/down & slides open/close operation signal to moonroof motor assembly.
Moonroof motor assembly	The moonroof motor and cpu are integrated into one unit that enables tilt up/down & slide open/ close by moonroof switch operation.
Front door switch	Detects door open/close condition and transmits to BCM.
Combination meter	Transmits vehicle speed signal to moonroof motor assembly.

System

Moonroof Moonroof : system diagram Moonroof : system description Moonroof system Input/output signal chart Moonroof operation Moonroof motor assembly operates with the power supply th ...
