Nissan Sentra Service Manual: Battery

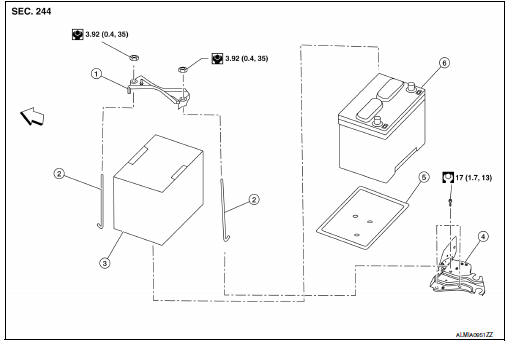

Exploded view
- Battery frame
- Battery rods
- Battery cover
- Battery bracket
- Battery tray
- Battery
Front
Removal and installation (battery)
Removal
- Loosen the battery terminal nuts and disconnect both battery negative and positive terminals.
Caution:
To prevent damage to the parts, disconnect the battery negative terminal first.
- Remove battery frame nuts, battery frame and battery rods.
- Remove battery cover and battery.
- Remove battery tray.
Installation
Installation is in the reverse order of removal.
Caution:
- To prevent damage to the parts, connect the battery positive terminal first.
- Ensure battery cables are tightly clamped to battery terminals for good contact.
- Check battery terminal for poor connection caused by corrosion.
Reset electronic systems as necessary. Refer to pg-7, "additional service when removing battery negative terminal : special repair requirement".
Removal and installation (battery bracket)
Removal
- Remove air cleaner and air duct. Refer to em-25, "removal and installation".
- Remove battery. Refer to pg-50, "removal and installation (battery)".
- Remove CVT breather hose bracket bolt (A) and CVT breather hose bracket (1) (if equipped).
- Remove battery bracket bolts and battery bracket.
- Remove harness clip from battery bracket.
Installation
Installation is in the reverse order of removal.
Battery terminal with fusible link
Exploded view
Battery terminal with fusible link
Harness connector
Removal and installation
Removal
Loosen the battery terminal nuts and disconnect both battery negative and
positive ...
