Nissan Sentra Service Manual: Battery current sensor

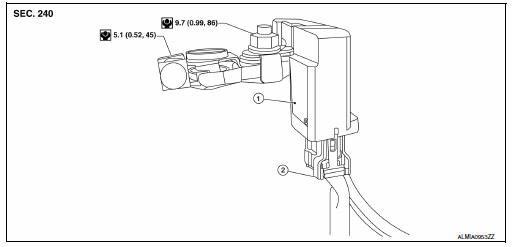

Exploded view
- Battery current sensor
- Current sensor harness connector
Removal and installation
Removal
- Loosen the battery terminal nut and disconnect battery negative terminal. Refer to PG-50, "Exploded View".
- Disconnect the harness connector from current sensor.
- Remove the battery current sensor from the negative terminal.
Installation
Installation is in the reverse order of removal.
Reset electronic systems as necessary. Refer to pg-7, "additional service when removing battery negative terminal : special repair requirement".
